TE + TW

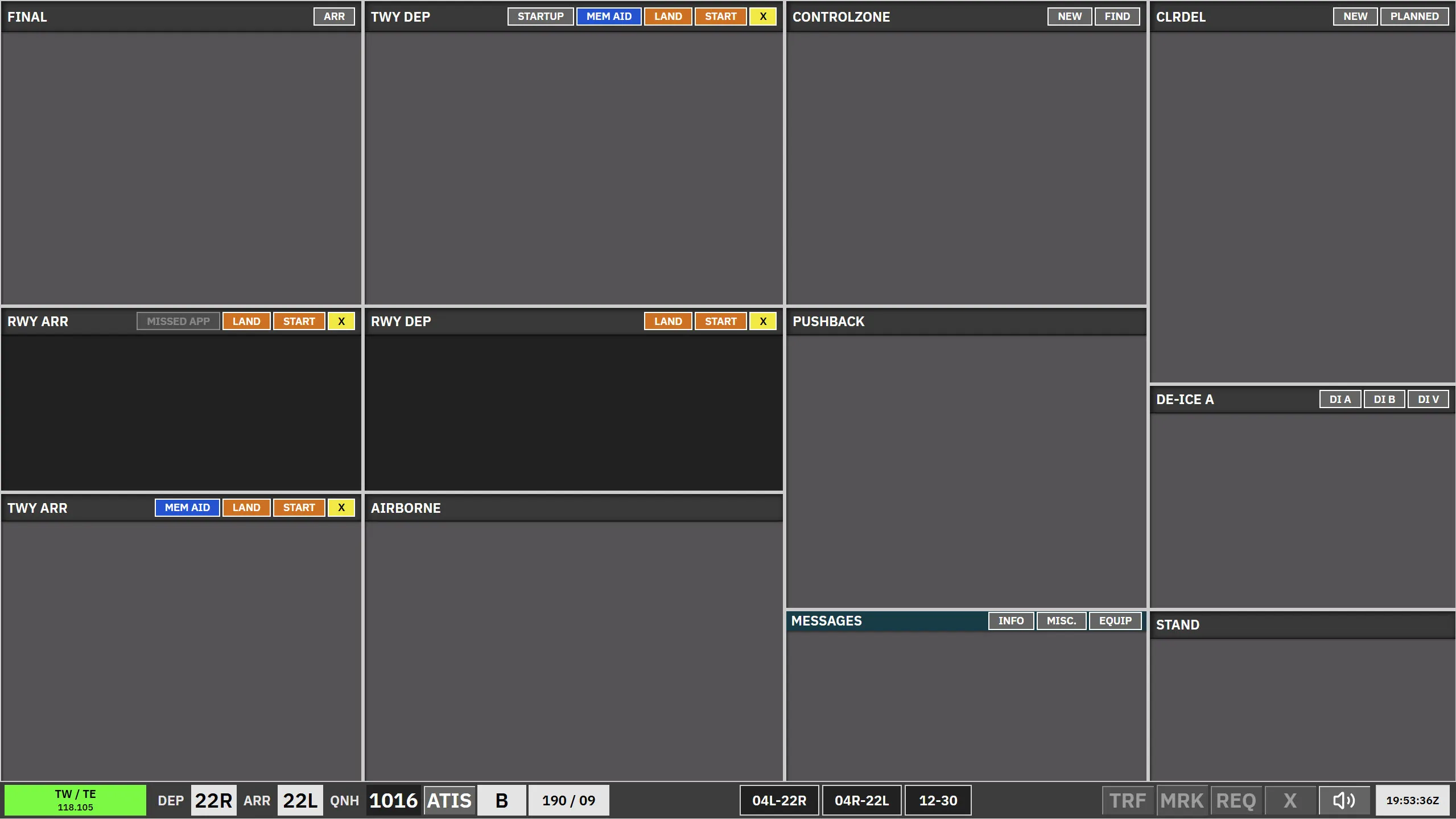

TE + TW is the tower scope for EKCH_A_TWR and EKCH_D_TWR, using the TWR aspect layout.
Bay overview
Section titled “Bay overview”| Bay | Strip type | Notes |
|---|---|---|
| Final | TWR-ARR | Arriving aircraft; concerned (purple) until assumed. |
| RWY ARR | TWR-ARR | On the runway for landing. |
| TWY ARR | APN-ARR | Taxiing arrival after the runway. |
| TWY DEP (TWR) | TWR-DEP | Synced with apron TWY DEP-LWR. Can be REQ. |
| RWY DEP | TWR-DEP | Holding for takeoff. |
| Airborne | TWR-DEP | After takeoff until tag is assumed. |
| Control zone | Control zone | VFR strips only — no SI transfers. |
| Push back (TWR) | APNPUSH | Can be REQ. |
| Messages | Messages | Coordination / free-text. |
| CLR DEL | (passive) | Passive when delivery + apron scopes are online. |
| De-ice A | APNPUSH | Same strip family as other pushback/taxi strips. |
| Stand | APN-ARR | At gate / stand. |
Arrivals — Final and RWY ARR
Section titled “Arrivals — Final and RWY ARR”- Strips appear in Final; use ARR in the bay header to open the ARR dialogue if a strip is missing.
- Callsign opens the ARR dialogue; FORCE ASSUME assumes the strip and prioritises it.
- Click the arrival runway to move a strip from Final to RWY ARR. Runway colour reflects clearance state (green / red) based on other traffic in the bay.
- The strip moves to TWY ARR automatically when the aircraft leaves the runway area; manual moves are also available.
Departures — TWY DEP-TWR, RWY DEP, Airborne
Section titled “Departures — TWY DEP-TWR, RWY DEP, Airborne”- Click the departure runway to move a strip from TWY DEP-TWR to RWY DEP. Same green / red clearance logic applies.
- The strip moves to Airborne automatically when the aircraft is airborne; SI then targets the departure frequency.
- Manual move from RWY DEP to Airborne is possible; SI still drives the downstream handoff.
Control zone
Section titled “Control zone”Use New / Find in the bay header for VFR strips only. No transfers.
